Cross-cutting systems
Portable circular saws

KSS 50 cc | KSS 50 18M bl | K 55 cc | K 55 18M bl

New multi-purpose machines for cutting depths up to 58 millimeters.

The portable circular saw K 55 and cross-cutting system KSS 50 are compact and rugged multi-purpose machines developed by Mafell to new designs. Offering a cutting depth of up to 58 millimeters, they are ideal tools for a variety of sawing tasks.

Compact, lightweight, powerful – and equipped for most every challenge.

Given their power and ease of use, the K 55 and KSS 50 are predestined for diverse on-site applications, from cross-cutting and ripping to plunge-cutting solid structural timbers, boards or roof battens. The highly efficient CUprex motor generates an output of 1,300 Watts and ensures supreme cutting performance – even when working hard every day.

Cross-cutting systems KSS cc and KSS 50 18M bl.

The cross-cutting system KSS 50 is characterized by maximum precision and extremely simple operation. The saw can cut as deep as 58 mm. Its low weight and powerful motor predestine the KSS 50 for work on construction sites.

Portable circular saws K 55 cc and K 55 18M bl.

The new compact and extremely capable portable circular saw K 55 executes exceptionally high-quality cuts to a depth of 58 millimeters. And thanks to its excellent power-to-weight ratio, safety is ensured at all times when cutting with the saw.

Technical data

Description

KSS 50 cc

Nominal power input

1,300 W (1,7 hp)

Nominal speed – no load

5,700 1/min

Cutting depth at 90°



with track

52 mm (2 1/16 in.)

without track

58 mm (2 5/16 in.)

Cutting depth at 45°



with track

42 mm (1 5/8 in.)

without track

48 mm (1 7/8 in.)

Cutting length

407 mm (16 in.)

Tilting range

0 – 45°

Angle cuts

– 60° bis + 60°

Voltage rating

230 V

Weight

5.4 kg (11.9 lbs)

Rechargeable battery

Description

KSS 50 18M bl

Nominal power input

Nominal speed – no load

4,450 1/min

Cutting depth at 90°



with track

52 mm (2 1/16 in.)

without track

58 mm (2 5/16 in.)

Cutting depth at 45°



with track

42 mm (1 5/8 in.)

without track

48 mm (1 7/8 in.)

Cutting length

407 mm (16 in.)

Tilting range

0 – 45°

Angle cuts

– 60° bis + 60°

Voltage rating

18 V

Weight

5.7 kg (12.6 lbs)

Rechargeable battery

18 V, 5,5 Ah, 99 Wh

Description

K 55 cc

Nominal power input

1,300 W (1,7 hp)

Nominal speed – no load

5,700 1/min

Cutting depth at 90°



with track

52 mm (2 1/16 in.)

without track

58 mm (2 5/16 in.)

Cutting depth at 45°



with track

42 mm (1 5/8 in.)

without track

48 mm (1 7/8 in.)

Tilting range

0 – 45°

Voltage rating

230 V

Weight

4.1 kg (9 lbs)

Rechargeable battery

Description

K 55 18M bl

Nominal power input

Nominal speed – no load

4,450 1/min

Cutting depth at 90°



with track

52 mm (2 1/16 in.)

without track

58 mm (2 5/16 in.)

Cutting depth at 45°



with track

42 mm (1 5/8 in.)

without track

48 mm (1 7/8 in.)

Tilting range

0 – 45°

Voltage rating

18 V

Weight

4,3 kg

Rechargeable battery

18 V, 5,5 Ah, 99 Wh

Delivery scope

Cross-cutting system
KSS 50 cc

1 TCT sawblade
168 x 1,8 x 1,2 x
20 mm, 32 teeth, WZ
1 Allen key 5 mm
1 Mains cable 4 m (13.1 ft)
1 Guide track M
Ref. No. 918901
Boxed

Cross-cutting system
KSS 50 18M bl

1 TCT sawblade
168 x 1,8 x 1,2 x
20 mm, 32 teeth, WZ
1 Allen key 5 mm
1 Guide track M
1 Dust bag
Ref. No. 91B602
PURE – In carrying case

Portable circular saw
K 55 cc

1 TCT sawblade
168 x 1,8 x 1,2 x
20 mm, 24 teeth, WZ
1 Allen key 5 mm
1 Mains cable 4 m (13.1 ft
Ref. No. 918001
Boxed

Portable circular saw
K 55 18M bl

1 TCT sawblade
168 x 1,8 x 1,2 x
20 mm, 24 teeth, WZ
1 Allen key 5 mm
1 Dust bag
Ref. No. 91B502
PURE – in T-MAX

Cross-cutting system
KSS 50 cc

1 TCT sawblade
168 x 1,8 x 1,2 x
20 mm, 32 teeth, WZ
1 Allen key 5 mm
1 Mains cable 4 m (13.1 ft)
1 Guide track M
Ref. No. 918902
In carrying case

Cross-cutting system
KSS 50 18M bl

1 TCT sawblade
168 x 1,8 x 1,2 x
20 mm, 32 teeth, WZ
1 Allen key 5
1 Guide track M
2 Battery Power Tank 18 M 99 LiHD
1 Battery PowerStation APS M
1 Dust bag
Ref. No. 91B601
In carrying case

Portable circular saw
K 55 cc

1 TCT sawblade
168 x 1,8 x 1,2 x
20 mm, 24 teeth, WZ
1 Allen key 5 mm
1 Mains cable 4 m (13.1 ft)
Ref. No. 918002
in T-MAX

Portable circular saw
K 55 18M bl

1 TCT sawblade
168 x 1,8 x 1,2 x
20 mm, 24 teeth, WZ
1 Allen key 5 mm
2 Battery Power Tank 18 M 99 LiHD
1 Battery PowerStation APS M
1 Dust bag
Ref. No. 91B501
in T-MAX

Accessories

These new multi-purpose machines give you all you need for an enormous range of tasks. And an extensive assortment of accessories allows the saws to be customized to the task in hand.

TCT sawblade

168 x 1,2/1,8 x 20 mm, Z 16, WZ
for ripping in wood
Ref. No. 092476

TCT sawblade

168 x 1,2/1,8 x 20 mm, Z24, WZ
for universal use with wood
Ref. No. 092478

TCT sawblade

168 x 1,2/1,8 x 20 mm, Z32, WZ
for fine sawing in wood
Ref. No. 092480

TCT sawblade

168 x 1,2/1,8 x 20 mm, Z56, WZ
for fine sawing in wood
Ref. No. 092482

Parallel guide fence K55-PA

Ref. No. 206825

Roller edge guide

Ref. No. 206073

Guide track ML

Max. cutting length 770 mm
Ref. No. 204378

Connecting piece F-VS

For joining two guide tracks
Ref. No. 204363

Angle fence F-WA

Ref. No. 205357

End cap F-EK

2 off
Ref. No. 205400

Lever clamp F-SZ 180MM

2 clamps, for fixing guide rail to workpiece
Ref. No. 207770

Non-slip profile F-HP 6,8M

6,8 m long
Ref. No. 204376

Splinter guard F-SS 3,4M

3.4 m long
Ref. No. 204375

Battery PowerStation

APS M
Ref. No. 094492
High-speed charger
APS M+
Ref. No. 094509

Battery PowerTank

PowerTank 18 M 72 LiHD, 18 V, 72 Wh
Ref. No. 094500

PowerTank 18 M 99 LiHD, 18 V, 99 Wh
Ref. No. 094503

PowerTank 18 M 144 LiHD, 18 V, 144 Wh
Ref. No. 094498

Suction clamping system

Aerofix F-AF 1
With track, top and
bottom adapters, flexible hose
Ref. No. 204770
Flexible hose FXS L
Length up to 3.2 m
Ref. No. 205276

Guide rail F

F 80 - Length 0,80 m
Ref. No. 204380
F 110 - Length 1,10 m
Ref. No. 204381
F 160 - Length 1,60 m
Ref. No. 204365
F 210 - Length 2,10 m
Ref. No. 204382
F 310 - Length 3,10 m
Ref. No. 204383

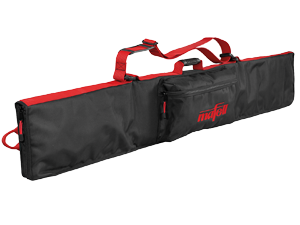

Guide rail bags

Guide Bag F 160
for guide rails up to 1.6 m l
Ref. No. 204626
Guide rail set with bag:
2 x F 160 + F-VS + 2 x F-SZ 100MM
+ guide pocket
Ref. No. 204805
Guide rail set with bag:
F 80 + F 160 + F-WA + F-VS
+ 2 x F-SZ 100MM
+ guide pocket
Ref. No. 204749
